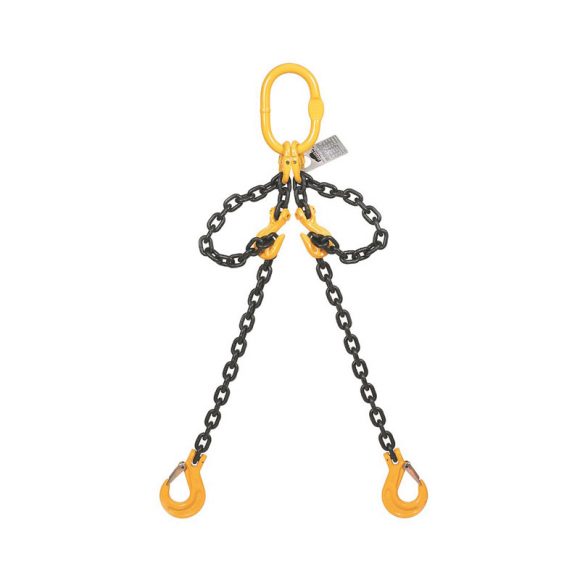

Chain Sling Rantai 2 Legs Kaki
Related products
Crosby Chain Alloy Spec 10
Grade 100 ALLOY CHAIN recommended for overhead lifting application
Chain Size
|
Gr. 100 Drum Stock No. | Feet Per Drum | Material Size (in) | Working Load Limit (lbs) | Maximum Inside Length (in) | Maximum Inside Width (in) | Maximum Length 100 Links (in) | Weight Per 100 Feet (lbs) | ||
|
273710 | 500 | 0.276 | 4300 | 0.87 | 0.42 | 90 | 75 | ||
|
273729 | 500 | 0.343 | 5700 | 1.01 | 0.49 | 100 | 113 | ||
|
273738 | 500 | 0.394 | 8800 | 1.23 | 0.58 | 125 | 148 | ||
|
273747 | 300 | 0.512 | 15000 | 1.57 | 0.77 | 164 | 249 | ||
|
273756 | 200 | 0.630 | 22600 | 1.93 | 0.90 | 202 | 378 |
Crosby Chain Alloy Spec 8
Grade 80 ALLOY CHAIN recommended for overhead lifting applications
| Chain Size (in) | Spec.8 Drum Stock No. | Feet Per Drum | Material Sizeh (in) | Working Load Limit (Lbs) | Maximum Inside Length (In) | Minimum Inside Length (In) | Maximum Length 100 Links (In) | Weight Per 100 Ft (Lbs) |
| 9/32 (1/4) | 273527 | 500 | 0.276 | 3500 | 0.87 | 0.42 | 90 | 72 |
| 5/16 | 273536 | 500 | 0.343 | 4500 | 1.01 | 0.49 | 100 | 114 |
| 3/8 | 273545 | 500 | 0.394 | 7100 | 1.23 | 0.58 | 125 | 148 |
| 1/2 | 273554 | 300 | 0.512 | 12000 | 1.57 | 0.77 | 164 | 243 |
| 5/8 | 273563 | 200 | 0.630 | 18100 | 1.93 | 0.90 | 202 | 351 |
| 3/4 | 273572 | 100 | 0.787 | 28300 | 2.42 | 1.14 | 252 | 584 |
| 7/8 | 273581 | 100 | 0.886 | 34200 | 2.66 | 1.26 | 277 | 705 |
