Wire Rope Ukuran 6 x 12 + 7HC
Wire Rope Ukuran 6 x 12 + 7HC

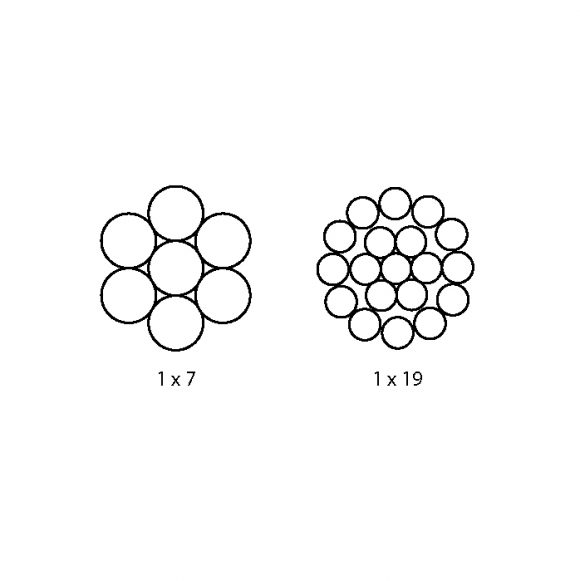

Wire Rope Ukuran 1×7 & 1×19

Detail Produk : Application for Hanger, Communication Cable, Cable Stay

Diameter of Rope (mm) Minimum Breaking Load B&CG (180kg/mm2) kgf Approx. Weight per 100 meter (kg)
1.0 – 0.49
1.2 131.00 0.70
1.5 190.00 1.23
2.0 320.00 1.95
2.5 500.00 3.05
3.0 720.00 4.39
4.0 1,280.00 7.81
Add to compare
Add to wishlist
SKU: 1x7 & 1x19 Categories: , ,
Description

PT. Anugrah Sukses Marine menjual wire rope terlengkap yang salah satunya kami menjual wire rope ukuran 1×7 & 1×19 yang dapat anda gunakan untuk aplikasi anda di Lapangan. Untuk ukuran wire rope 1×7 & 1×19 kami rekomendasikan bagi anda yang membutuhkan wire rope pada aplikasi yang tidak terlalu berat.

Additional information
Diameter of Rope (mm)

1 – 4
Minimum Breaking Load B & CG (180 kg) kgf

131 – 1280
Approx. Weight per 100 meter (kg)

0 – 7
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Wire Rope Ukuran 1×7 & 1×19”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

Add to compare

Wire Rope 19×7 IWRC

, ,
Detail Produk : Application for Crane & Hoist
Diameter of Rope (mm) Minimum Breaking Load
  B&CG (180kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8
4.19
0.270
9
4.91
0.330
10
6.06
0.420
11
7.15
0.510
12
9.44
0.600
13
10.00
0.670
14
12.84
0.830
16
16.81
1.070
19
23.64
1.530
20
31.59
1.700
22
32.00
2.000
25
51.00
2.650
28
44.00
3.330

Add to wishlist
Read more
Quick view
Add to compare

Wire Rope 6×37 + FC

, ,
Detail Produk : Application for Marine, Crane, Hoist, General Engineering
Diameter of Rope (mm) Minimum Breaking Load
    A&BG (165kg/mm2) Tonnef        B&CG (180kg/mm2)     Tonnef        C  (200kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8
3.46 3.69 3.99
0.230
9
4.38 4.67 5.04
0.291
10
5.41 5.76 6.22
0.359
12
7.79 8.29 8.95
0.517
14
10.60 11.30 12.20
0.704
16
13.80 14.70 15.90
0.920
18
17.50 18.70 20.20
1.160
19.1
19.80 20.50 22.70
1.310
20
21.60 23.00 24.80
1.440
22.4
27.10 28.90 31.20
1.800
24
31.20 33.20 35.90
2.070
25
33.80 36.00 38.90
2.250
26
36.60 38.90 42.00
2.430
28
42.40 45.20 48.80
2.820

Add to wishlist
Read more
Quick view
Add to compare

Wire Rope 6×29 (FI) IWRC

, ,
Detail Produk : Application for Crane, Hoist, Lifting, General Engineering
Rope Size (mm) Minimum Breaking Load
    A&BG (165kg/mm2) Tonnef        B&CG (180kg/mm2)     Tonnef        C  (200kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8
4.05 4.36 4.91
0.282
9
5.12 5.52 6.21
0.367
10
6.33 6.81 7.67
0.441
12
9.11 9.90 11.10
0.635
12.5
10.10 10.80 12.00
0.689
14
12.70 13.60 15.00
0.864
16
16.60 17.60 19.60
1.130
18
21.00 22.30 24.80
1.430
19.1
23.70 25.20 27.90
1.610
20
25.50 27.60 30.60
1.760
22.4
32.00 34.70 38.40
2.210
24
36.70 39.80 44.10
2.540
25
39.90 43.10 47.90
2.760
26
43.10 46.70 51.80
2.980
28
50.00 54.20 60.10
3.460
30
57.40 62.10 69.00
3.970
32
63.30 70.70 76.20
4.510
34
73.70 79.80 86.20
5.100
36
82.60 90.20 97.00
6.710
38
92.10 100.00 110.30
6.370
40
102.00 111.00 122.20
7.050
42
112.00 123.00 131.00
7.780
44
123.00 135.00 148.70
8.530
50
159.00 171.00 192.00
11.000
52
172.00 182.00 207.00
11.900
54
186.00 203.00 220.00
12.900
56
200.00 218.00 241.00
13.800
64
261.00 286.00     -
18.100
68
295.00 322.00      -
20.400
72
331.00     -     -
22.900
74
349.00     -      -
24.100

Add to wishlist
Read more
Quick view
Add to compare

Wire Rope 6×24+7FC

, , ,
Detail Produk :Aplication for Net, Lashing, Finishing, Marine & General Engineering
Rope Size (mm) Minimum Breaking Load
    A&BG (165kg/mm2) Tonnef        B&CG (180kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8
3.21 3.50
0.212
9
4.06 4.43
0.269
9.5
4.53 4.94
0.290
10
5.02 5.47
0.332
11.2
6.29 6.86
0.416
12
7.22 7.87
0.416
12.5
7.84 8.55
0.519
14
9.83 10.70
0.651
16
12.80 14.00
0.850
18
16.20 17.70
1.080
19.1
18.40 20.10
1.210
20
20.10 21.90
1.330
22.4
25.20 27.50
1.670
24
28.90 31.50
1.910
25
31.30 34.10
2.080
26
33.90 37.00
2.240
28
39.30 37.00
2.240
30
45.10 49.20
2.990
Add to wishlist
Read more
Quick view
Add to compare

Wire Rope 6×19 (SL) IWRC

, ,
Detail Produk : Application for Crane, Hoist, Lifting, Logging, and General Engineering
Diameter of Rope (mm) Minimum Breaking Load
    A&BG (165kg/mm2) Tonnef        B&CG (180kg/mm2)     Tonnef        C  (200kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8.0
4.16 4.50 4.80
0.275
9.0
5.27 5.71 6.08
0.348
9.5
5.86 6.35 6.77
0.388
10.0
6.50 7.40 7.50
0.430
11.2
8.51 8.83 9.41
0.539
12.0
9.63 10.10 10.50
0.619
12.5
9.90 11.00 11.90
0.672
14.0
12.40 13.80 14.90
0.843
16.0
16.20 18.00 19.40
1.100
18.0
20.50 22.90 24.60
1.390
19.1
23.10 25.80 27.70
1.570
20.0
25.40 28.20 30.40
1.720
22.4
31.80 35.30 38.10
2.160
24.0
36.50 40.50 43.80
2.480
25.0
39.70 44.00 47.50
2.690
26.0
42.90 47.60 51.40
2.910
28.0
49.70 55.20 58.50
3.370
30.0
57.10 63.40 67.40
3.870
32.0
64.90 72.00 76.80
4.400
38.0
93.90 101.70 108.00
6.210
Add to wishlist
Read more
Quick view
Add to compare

WIRE ROPE 6X19 IWRC

Detail Produk : Application for Crane, Hoist, General Purpose
Diameter of Rope (mm) Minimum Breaking Load
    A&BG (165kg/mm2) Tonnef        B&CG (180kg/mm2)     Tonnef        C  (200kg/mm2)     Tonnef
Approx. Weight per meter (kg/m)
8
3.93 4.26 4.67
0.258
9
4.95 5.50 5.94
0.328
10
6.10 6.65 7.18
0.404
12
8.79 9.58 10.40
0.580
14
12.00 13.20 14.30
0.793
16
15.60 17.00 18.40
1.040
18
19.80 21.50 23.20
1.310
19.1
22.30 24.30 26.20
1.410
20
24.40 26.60 28.70
1.620
22.4
30.60 33.40 36.10
2.030
24
35.20 38.30 41.30
2.330
25
38.10 41.50 44.80
2.530
26
41.30 45.00 48.50
2.730
28
47.90 52.10 56.30
3.160
30
55.00 60.00 64.80
3.650
32
62.50 68.00 73.70
4.150
38
88.00 95.70 103.00
5.830

Add to wishlist
Read more
Quick view
Add to compare

Wire Rope Ukuran 6x7FC

, ,
Detail Produk : Application for Mining, Fishing, Cable stay
Diameter of Rope (mm) Minimum Breaking Load B & CG (180 kg/mm2) kgf Approx. Weight per 100 meter (kg)
1.0 - -
1.5 127.00 0.80
2.0 240.00 1.38
3.0 540.00 3.11
4.0 960.00 5.54
5.0 1,500.00 8.65
6.0 2,160.00 12.50

Add to wishlist
Read more
Quick view
Add to compare

Wire Rope Ukuran 6 x 12 + 7HC

, ,
Detail Produk : Application for Net, Lashing, Bundling, General purpose
Diameter of Rope (mm) Minimum Breaking Load A & BG (165 kg/mm2) Tonnef B & CG (180 kg/mm2) Tonnef Approx. Weight per meter (kg/m)
3 0.32 - 0.023
4 0.56 - 0.042
5 0.89 0.94 0.063
6 1.28 1.36 0.091
8 2.27 2.42 0.161
9 2.88 3.06 0.204
10 3.56 3.77 0.251
11 4.30 4.57 0.304
12 5.13 5.43 0.362
15 8.47 8.90 0.565
16 9.11 9.65 0.643
18 11.51 12.23 0.813

Add to wishlist
Read more
Quick view
